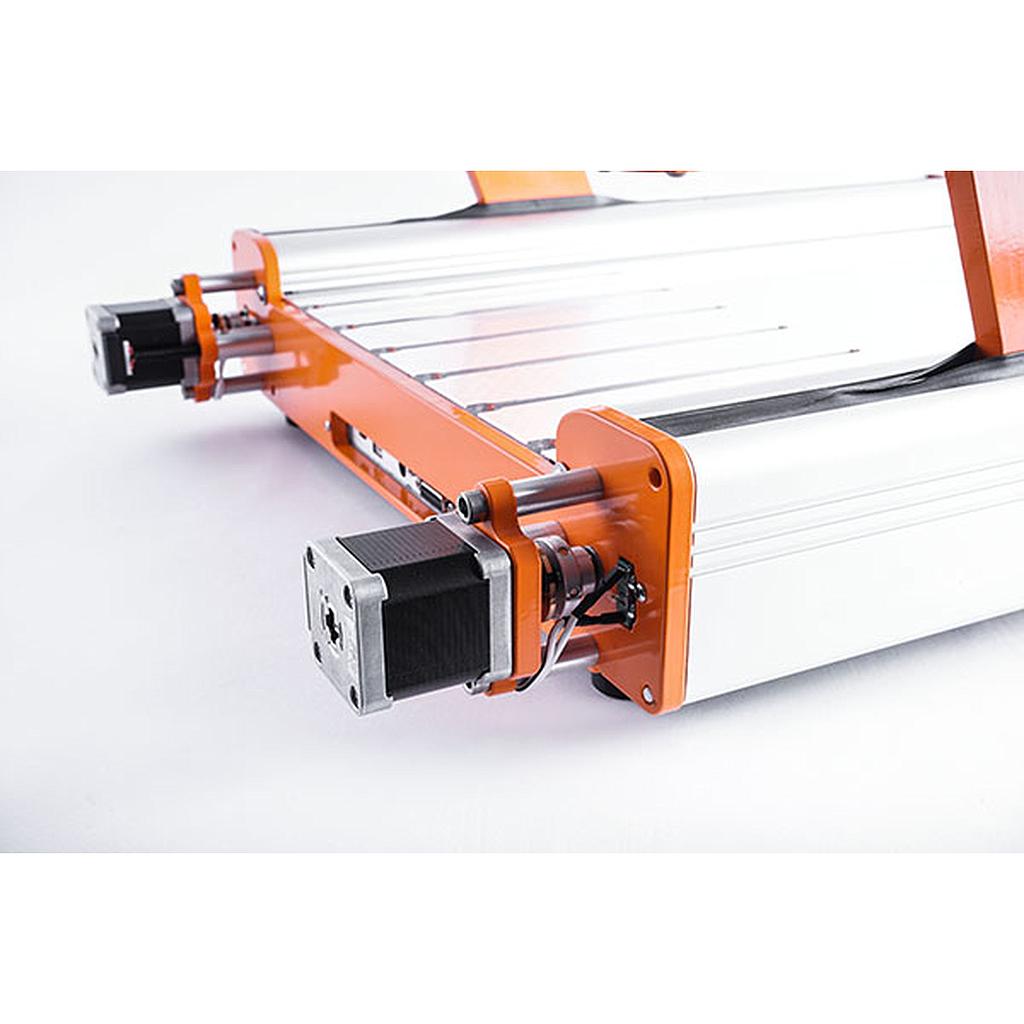

Performance Kit for D.840

https://stepcraft.odoo.com/web/image/product.template/202964/image_1920?unique=ef18bf4

399.00 399.0 USD 399.00

399.00

Not Available For Sale

    This combination does not exist.

    Description

    DUE TO HIGH DEMAND, PERFORMANCE KITS CAN HAVE A LEAD TIME OF UP TO 45 DAYS FROM DATE OF PAYMENT.
    The Performance Kit has been designed for all those who want to upgrade their 2nd generation D-Series with a feature of the Q-Series. The new mainboard can be easily installed and extends your existing D-Series with the modified, electronically monitored gantry system of the Q-Series. With 70 mm/seconds your machine will drive 40% faster on the Y-axis while the electronic encoding on each motor ensures that the gantry is always synchronized and will immediately stop in the event of lost steps. You can resume your job where it left off after a simple zero-reference operation realigning your gantry. The Performance Kit includes a new mainboard with dual Y-axis drivers and extra cooling elements to provide further operational security as well as all components and instructions necessary for the installation.
    IMPORTANT NOTE:  The Performance Kit is not compatible with 1st generation (V1) STEPCRAFT D-Series Machines or Black Edition machines.





    Technical Specification:
    • 2 stepper motors with 2 A
    • 70 mm/s on the Y-axis
