Milling Bath for Version-2 D.420

https://shop.stepcraft.us/web/image/product.template/230/image_1920?unique=b0e9586

169.00 169.0 USD 169.00

169.00

Not Available For Sale

    This combination does not exist.

    Description

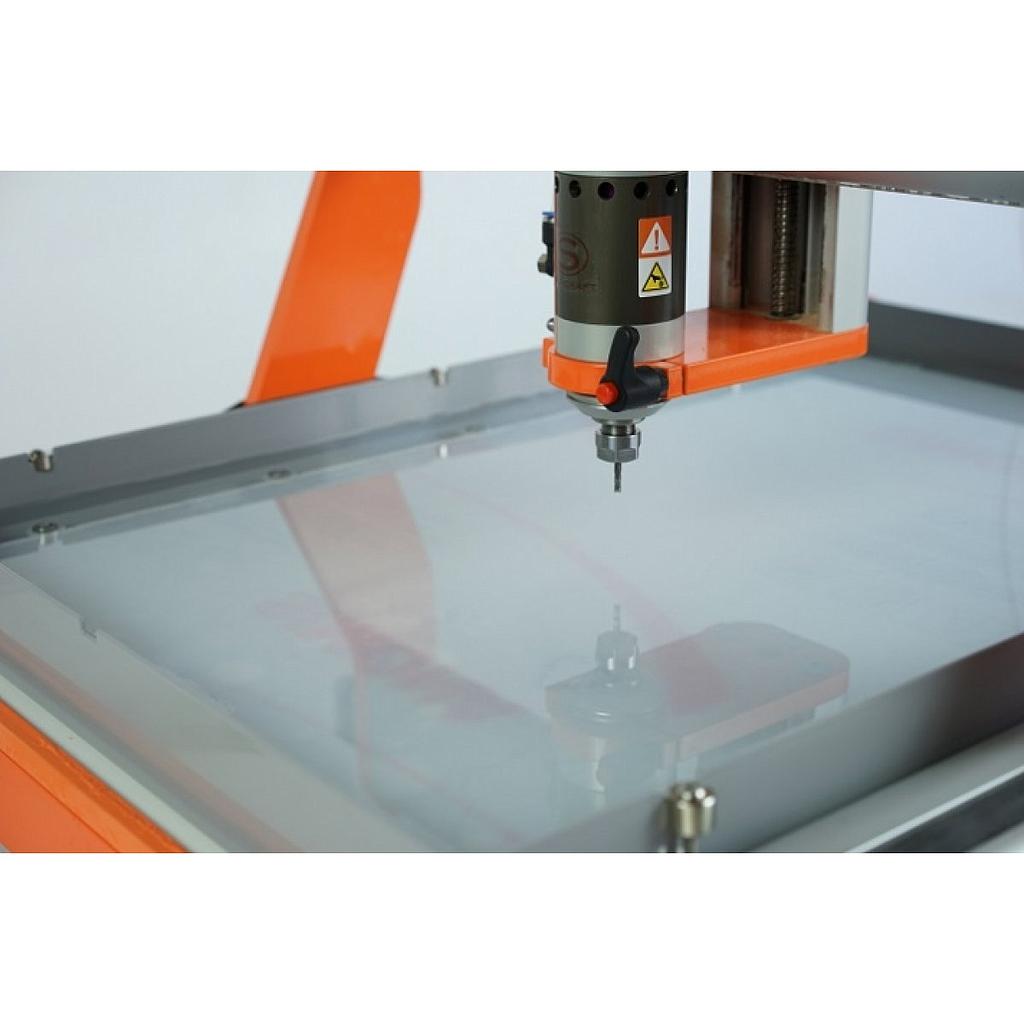

    When using the Milling Bath you can machine various materials under water or other liquids. Thus, you do not only achieve a very good cooling, which is helpful when milling Plexiglas, thermoplastics and carbon, but also a retaining of chips in the bath. Additionally, the life expectancy of the end mills is extended. The plates that need to be machined are secured in a comfortable way with the help of clamping bolts.

    The Milling Bath is delivered with a mounting kit.








    Technical Specifications:

    • Material thickness of the Milling Bath: 1 mm sheet steel

    • Water and corrosion resistant

    • Powder-coated

    • Maximum plate size (WxL): 150 x 350 mm

    Scope of Delivery:

    • Milling Bath with integrated clamping bolt system

    • Drainage set

    • Ball valve
