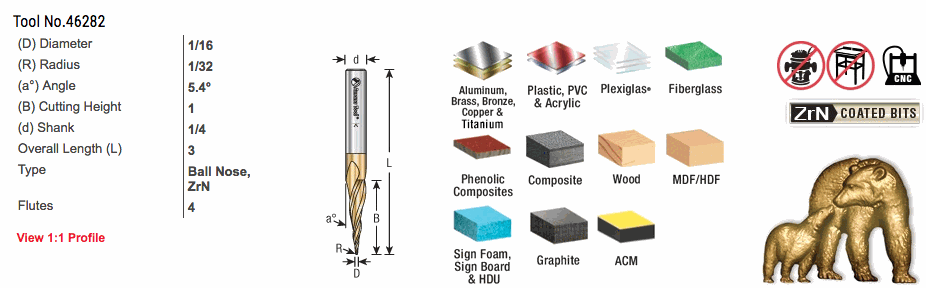

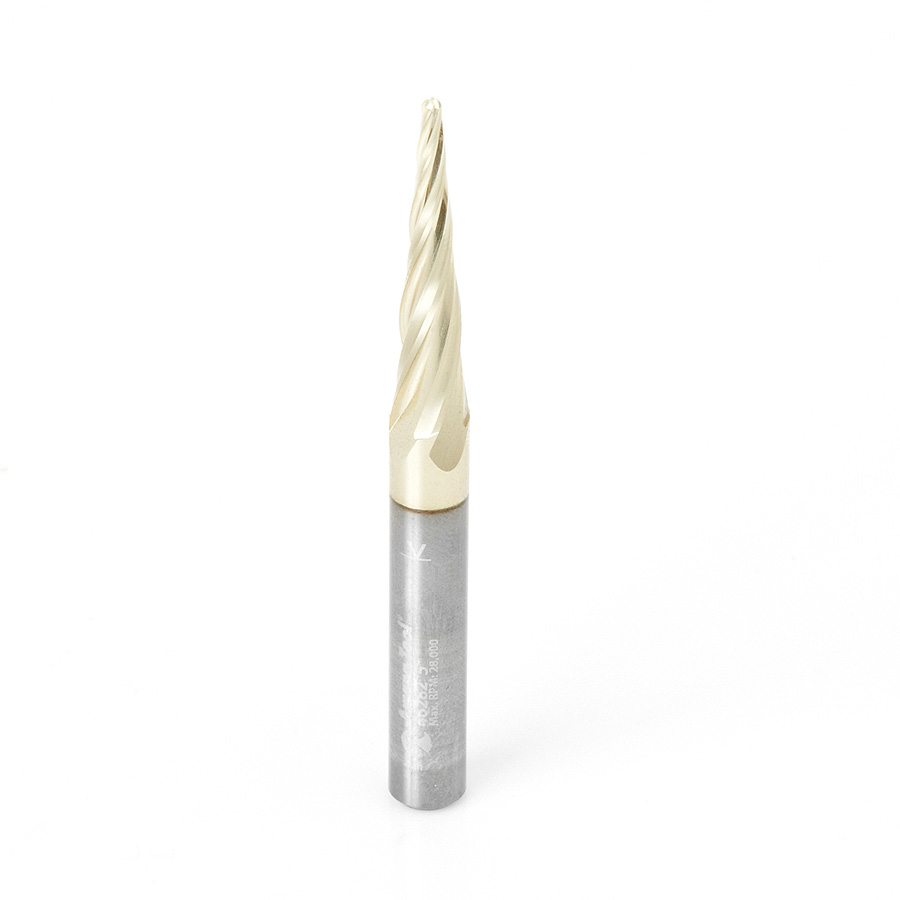

Amana Tool 46282 CNC 3D Carving 5.4 Deg Tapered Angle Ball Tip 1/16 Dia

https://shop.stepcraft.us/web/image/product.template/119/image_1920?unique=3531ca4

54.99 54.99 USD 54.99

54.99

Not Available For Sale

    This combination does not exist.

    Description

    Specially designed for 2D and 3D CNC profiling and carving in plastic aluminum & wood with a STEPCRAFT CNC system. The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping while the proprietary ZrN coating (applied by the physical vapor deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction & heat buildup.

    Tools are manufactured with high balance that allows them to run up to 60,000 RPMs. Adjust your chip load and feed rate accordingly.

    Applications:

    • A perfect bit for 3D carving
    • Precision 2D and 3D large scale carving
    • Great for deep profiling
    • Dimensional signage
    • 3D millwork
    • 2D and 3D contouring, profiling, modeling and pattern making for cabinetry, sign making, furniture making and jewelry mold making
    •  Perfect for model-makers on large 3D milling profiles in abrasive EPS foam and other materials

     Milling Plastics

    In a milling application, all plastics tend to behave differently so attention must be paid first and foremost to heat input, as that greatly impacts surface finish and chip control. Some of Amana Tool carving tools, as you can appreciate have a very small diameter therefore any material chip-loads need to reflect that small size. It can however withstand RPM’s up to 60,000 RPMs. A directed air-blast to keep chips away along with cooling the tool and work piece are always welcome.

    Suggested starting spindle speed might be 18,000 RPM, there needs to be some experimenting on the part of the programmer to best find an acceptable finish.
