Description
The 2nd Layer Module extends the connection possibilities of the Switch-Box. With this, three more tools can be connected to the Switch-Box, so the device can operate five tools total. The circuit board has to be mounted into the housing of the controller box of the Switch-Box (plug & play).
*The 2nd layer module is required for use of the following tools with the Switch-Box...
-DL445 Laser Engraver
-Tangential Knife OTK-3

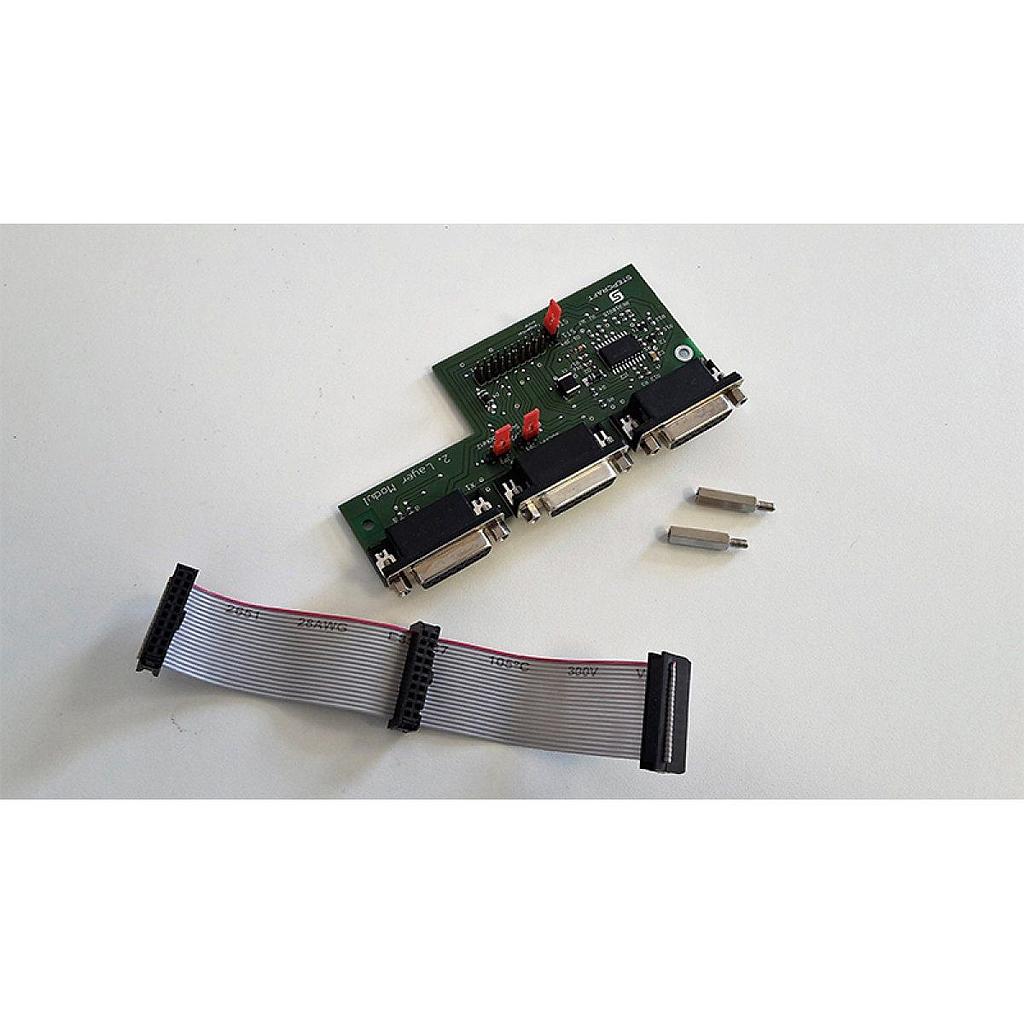

Scope of Delivery:
- 1x 2nd Layer Module (circuit board)
- 1x Connection Cable (flat conductor 10-pin)
- 2x M3 Spacer
- 1x Assembly Manual
